Biochar Machines

Advanced pyrolysis systems for sustainable biochar production. Our machines convert agricultural waste into high-quality biochar, contributing to carbon sequestration and soil health improvement.

From Waste to Value

We specialize in converting a wide range of agricultural and biomass waste into high-quality biochar using efficient and sustainable technology. Materials such as bamboo, coconut shells, crop residues, wood waste, briquettes, and pellets are processed through a controlled, low-oxygen system to produce carbon-rich biochar. This eco-friendly solution helps manage waste, improve soil health, enhance water retention, and reduce carbon emissions. Our approach supports sustainable farming while turning agricultural waste into long-term environmental and economic value.

Cotton Stalk

Cotton Stalk

Agricultural residue from cotton harvest

Agriculture Wastes

Agriculture Wastes

Crop residues and field waste materials

Briquettes

Briquettes

Compacted biomass fuel products

Coconut

Tender Coconut

Tender Coconut and fiber waste

Pulse Crop Residue

Pulse Crop Residue

Tur stalk and legume waste

Bamboo

Bamboo

Sustainable bamboo processing waste

Wood Waste

Wood Waste

Timber and wood processing residues

Biomass Pellets

Biomass Pellets

Compressed biomass fuel pellets

Coconut Shell

Coconut Shells

Coconut shells and fiber waste

Batch Type Biochar Machines

Our batch-type systems offer flexibility for small to medium-scale operations, ideal for farmers, entrepreneurs, and research institutions exploring biochar production.

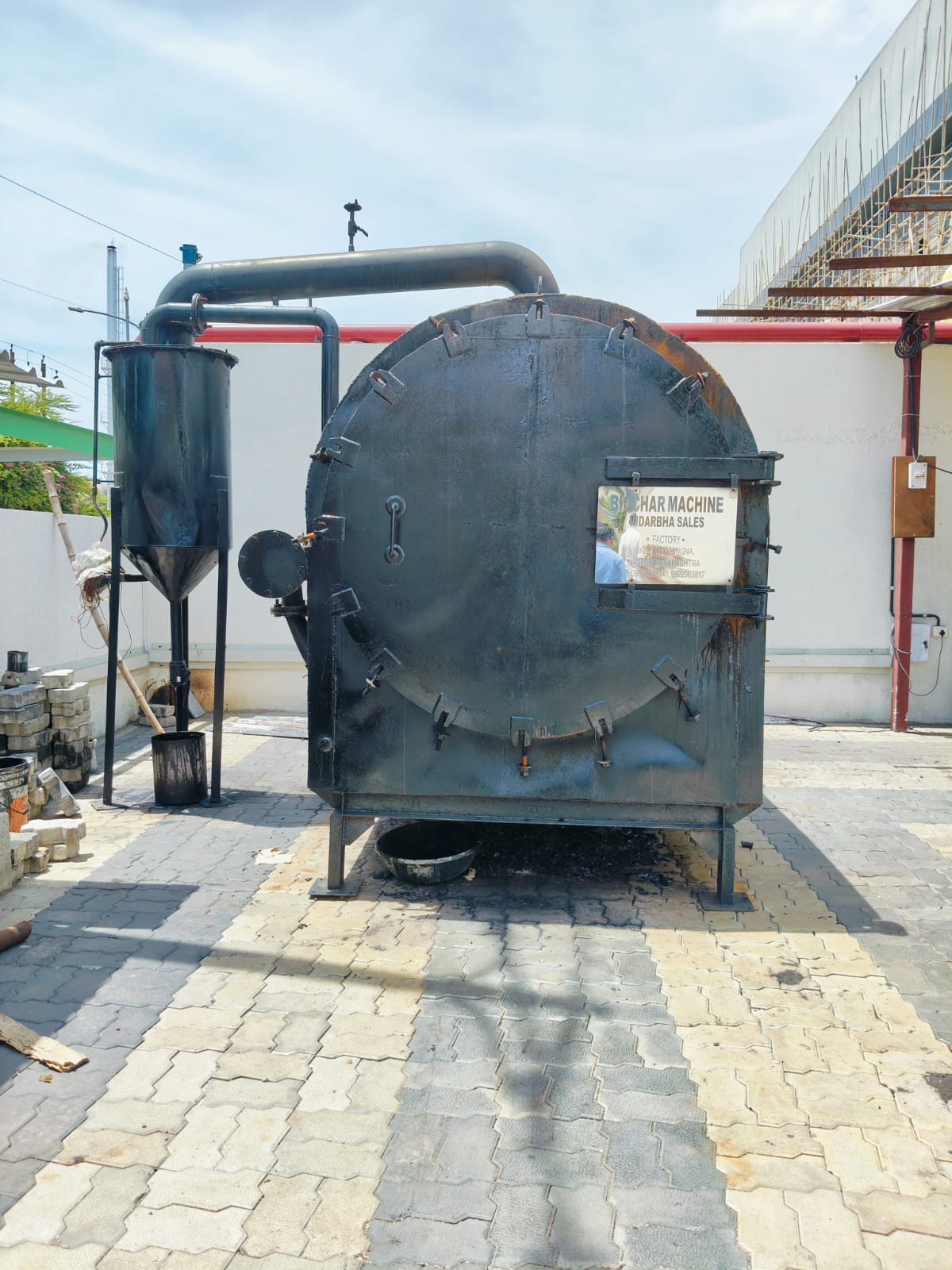

15000 Liter Model

15000 Liter Model

1500 ltr

Specifications

Chamber Size: 2 meter length × 1 meter diameter
MOC: Carbon Steel
Accessories: Scrubber, Temperature Gauge

Applications

Small-scale biochar productionFarmer cooperativesResearch testingQuality biochar

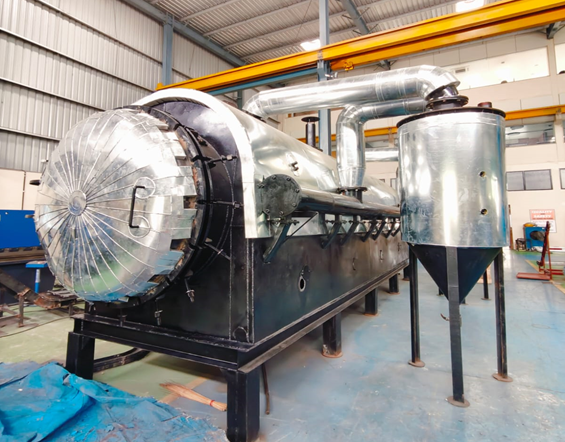

5000 Liter Model

5000 Liter Model

5000 ltr

Specifications

Heating Chamber: 3 mt length × 1.5 mt diameter
Outer Jacket: 5 mm MS material
Gas Pipes: 6 inch/4 inch/3 inch MS pipes for syn gases
Gas Scrubber: 1 gas inlet, 1 outlet, 1 exhaust with valve, 1 oil/water outlet with valve, fittings, fasteners
Syn Gas Burners: 4 nos under heating chamber, 2 nos firewood feeding doors
Blower: 1 HP Blower (220 Volts AC) for firewood burning

Applications

Medium-scale operationsBiochar entrepreneursAgro-industriesCarbon credit generation

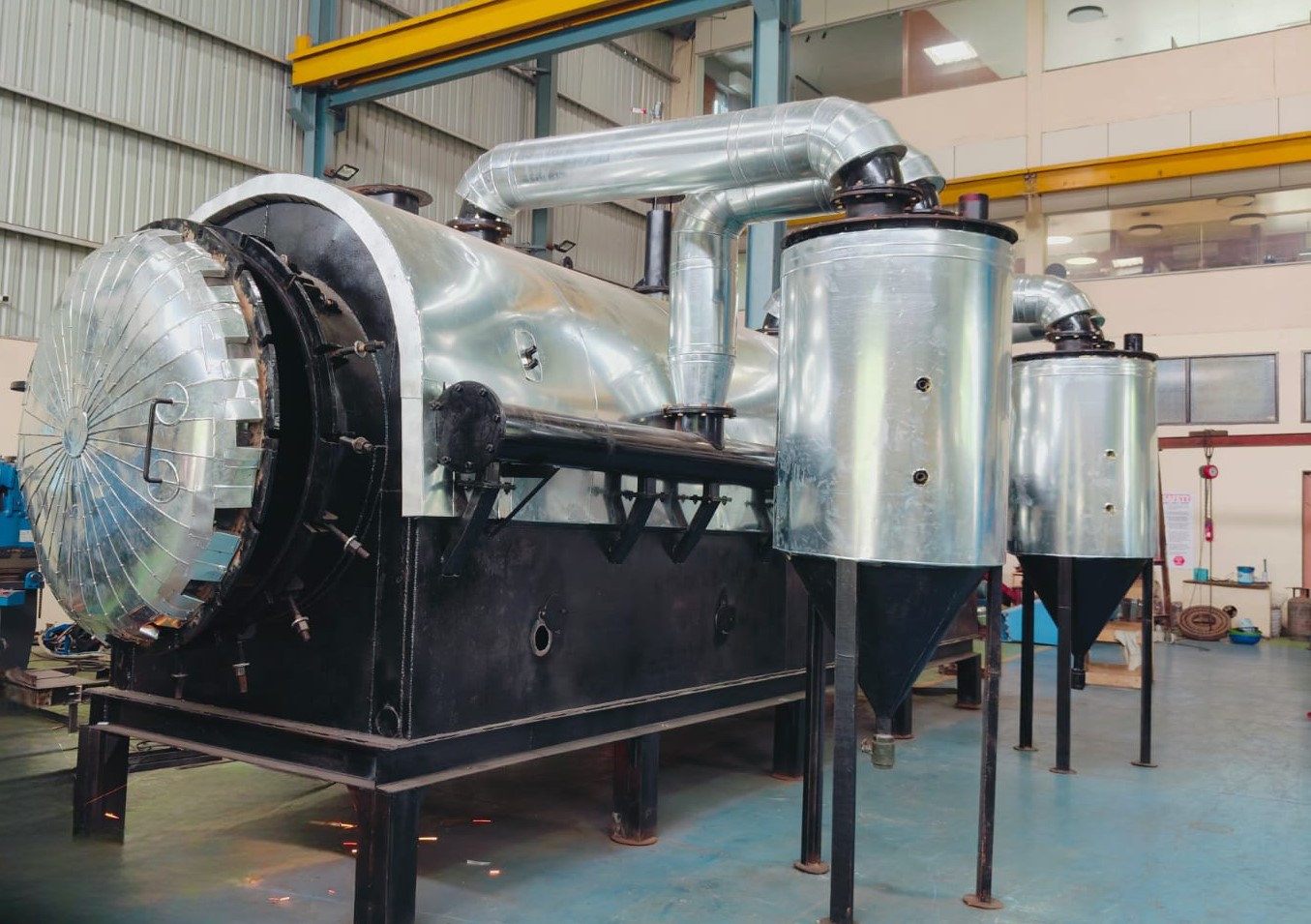

11000 Liter Model

11000 Liter Model

11000 ltr

Specifications

Chamber Size: 4.5 mt length × 1.5 mt diameter
Outer Jacket: 5 mm MS material, 50mm thickness
Gas Pipes: 9 inch/6 inch/4 inch MS pipes for syn gases (2 sets)
Gas Scrubber: 2 Nos each with 1 gas inlet, 1 outlet, 1 exhaust with valve, 1 oil/water outlet with valve
Syn Gas Burners: 8 nos under chamber, 3 nos firewood feeding doors
Blower: 1 no Blower with 4 outlets (2 HP, 220 Volts AC)

Applications

Large-scale biochar productionIndustrial processingExport-quality biocharRenewable energy

Continuous Type Biochar Machines

Designed for large-scale industrial operations, our continuous systems offer uninterrupted production with maximum efficiency and output.

Input Capacity

200kg/hr to 3 ton/hr of agro-waste

Output

30–35% biochar (depending on raw material)

Raw Material

Any type of agricultural waste in powder form

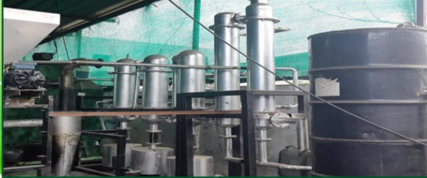

200 kg/hr Plant

200 kg/hr Plant

200 kg/hour

Applications

Small-scale continuous productionTesting and demonstrationsBiochar entrepreneursQuality control

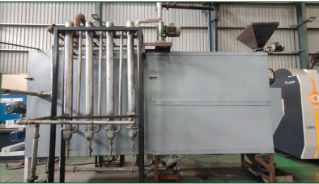

1 Ton/hr Plant

1 Ton/hr Plant

1 ton/hour

Applications

Medium-scale industrial operationsAgro-industriesBiochar manufacturingCarbon credit generation

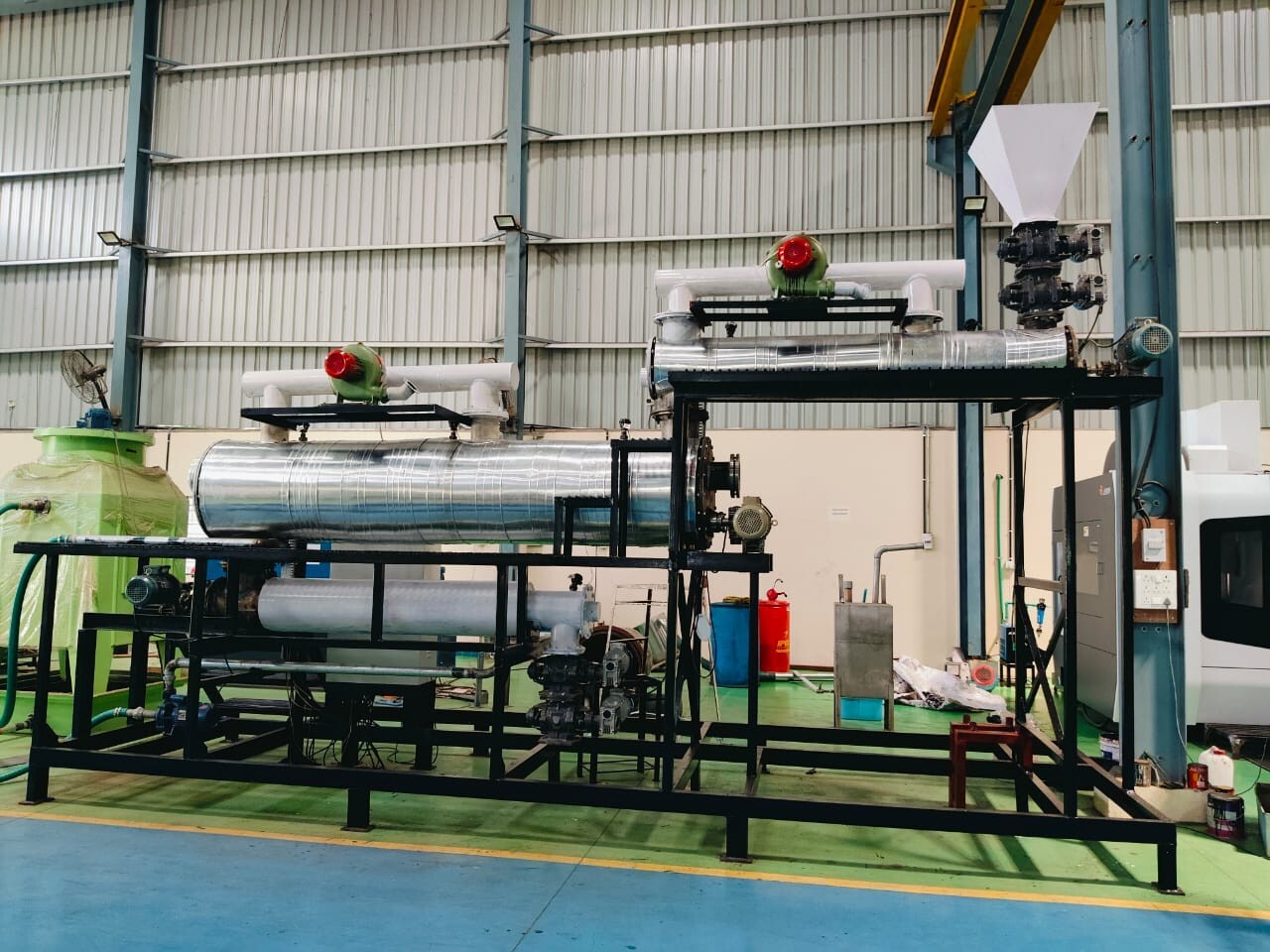

1 Ton/hr Plant (Advanced)

1 Ton/hr Plant (Advanced)

1 ton/hour

Applications

Industrial biochar productionLarge agro-industriesExport-quality biocharRenewable energy

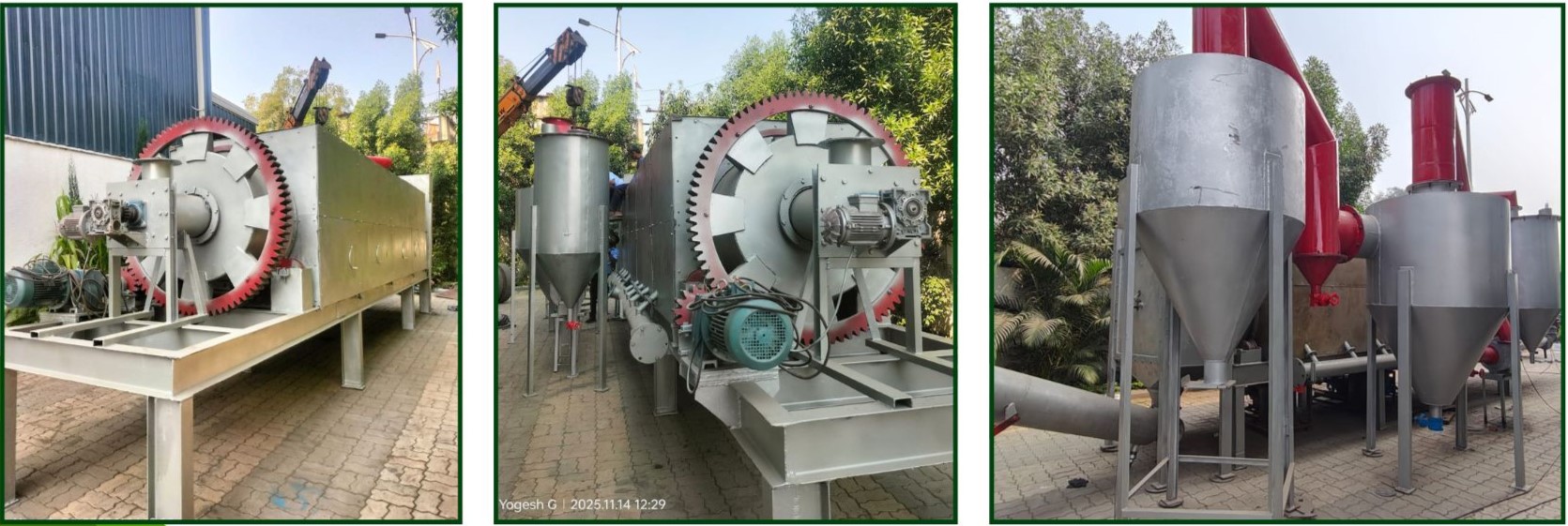

3 Ton/hr Plant

3 Ton/hr Plant

3 tons/hour

Applications

Large-scale industrial operationsBiochar manufacturing plantsHigh-volume processingExport-oriented units

Interested in Our Biochar Machines?

Contact us for detailed specifications, pricing, and customization options.
